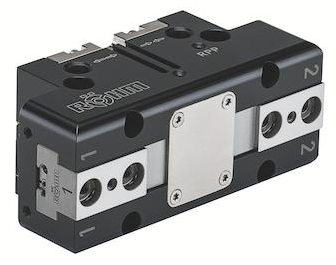

2-Jaw Parallel Gripper RPP-50

APPLICATION
Universal gripping of round and angular workpieces with two parallel
gripper fingers for handling with robots or portals.

TYPE
Available from sizes 50 to 380, each in two stroke variants.
Optionally with gripping force safety device and/or dirt cover.
Fastening of the gripper fingers via centering sleeves (included
in the scope of delivery).

TECHNICAL FEATURES
- Centrically clamping in compact design made of high-strength, hard-coated aluminium alloy
- All functional parts made of hardened steel for maximum service life

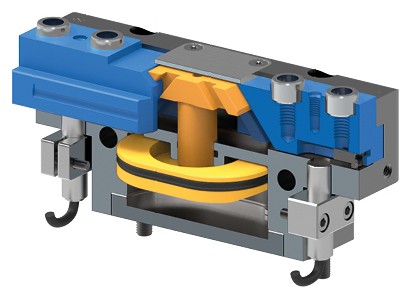

- Wedge hook principle with pneumatic actuation (hydraulic actuation available on request)
- Position monitoring with inductive or magnetic position sensors
- Optionally available with FKM seals for higher temperatures up to 150°C (on request)
- Integrable purge air connection to prevent contamination

CUSTOMER BENEFITS
» High gripping force with low dead weight and compact design
» High torque support for using long gripper fingers thanks to elongated jaw guide
» Maximum flexibility thanks to versatile connection and fastening options
» Long service life and high reliability thanks to specially ground base jaws in proven T-slot guide

C40
RPP-50 - 2-jaw parallel gripper air operated

Item No.	170119	170120▲	170121	170122▲	170123▲	170124▲
Design	RPP-50-1	RPP-50-2	RPP-50-1/GA	RPP-50-2/GA	RPP-50-1/GI	RPP-50-2/GI
Gripping force at 6 bar N	208	398	242	462	264	505
Stroke per jaw mm	4	2	4	2	4	2
Gripping force maintained N	-	-	35	65	35	65
Recommended workpiece weight kg	0.7	1.45	0.7	1.45	0.7	1.45
Weight kg	0.19	0.19	0.23	0.23	0.23	0.23
Width mm	65	65	65	65	65	65
Height mm	31	31	47	47	47	47
Depth mm	30	30	30	30	30	30
Mx Nm	20	20	20	20	20	20
My Nm	25	25	25	25	25	25
Mz Nm	10	10	10	10	10	10
Fz N	500	500	500	500	500	500
Operating pressure min./max. without GA/GI bar	2-8	2-8	-	-	-	-
Operating pressure min./max. with GA/GI bar	-	-	4-7	4-7	4-7	4-7
Clamping time s	0.02	0.02	0.02	0.02	0.03	0.03
Opening time s	0.02	0.02	0.03	0.03	0.02	0.02
Air consumption per cycle cm³	5	5	5	5	5	5
Max. allowable length of jaw mm	64	64	64	64	64	64
▲ on request
