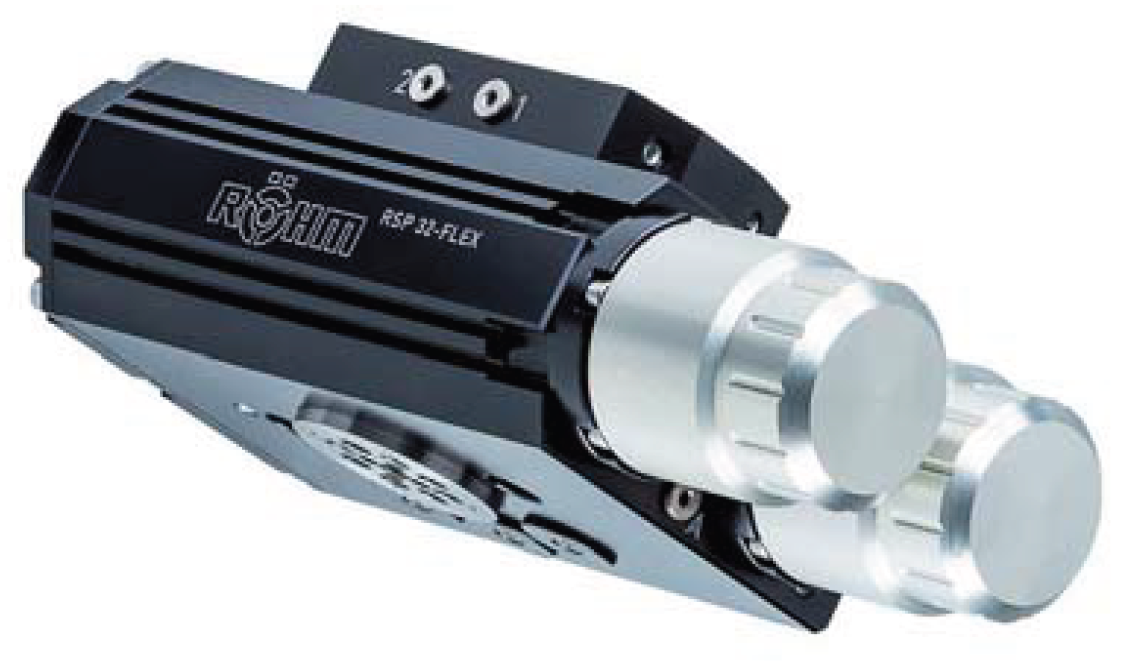

RSP-FLEX 32

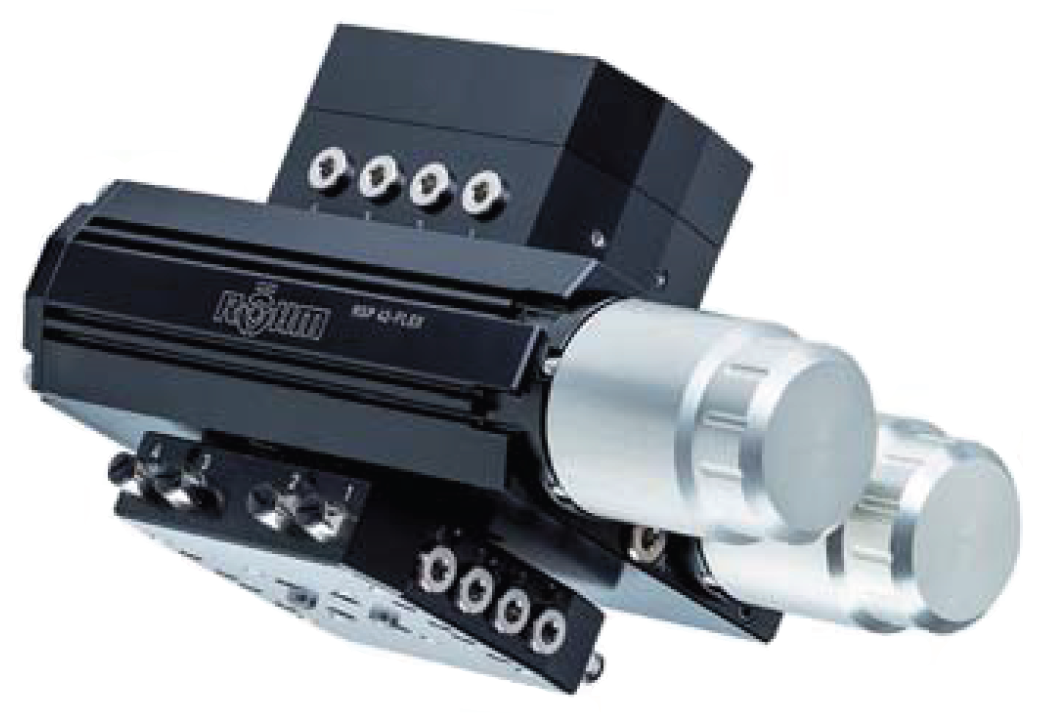

RSP-FLEX 42

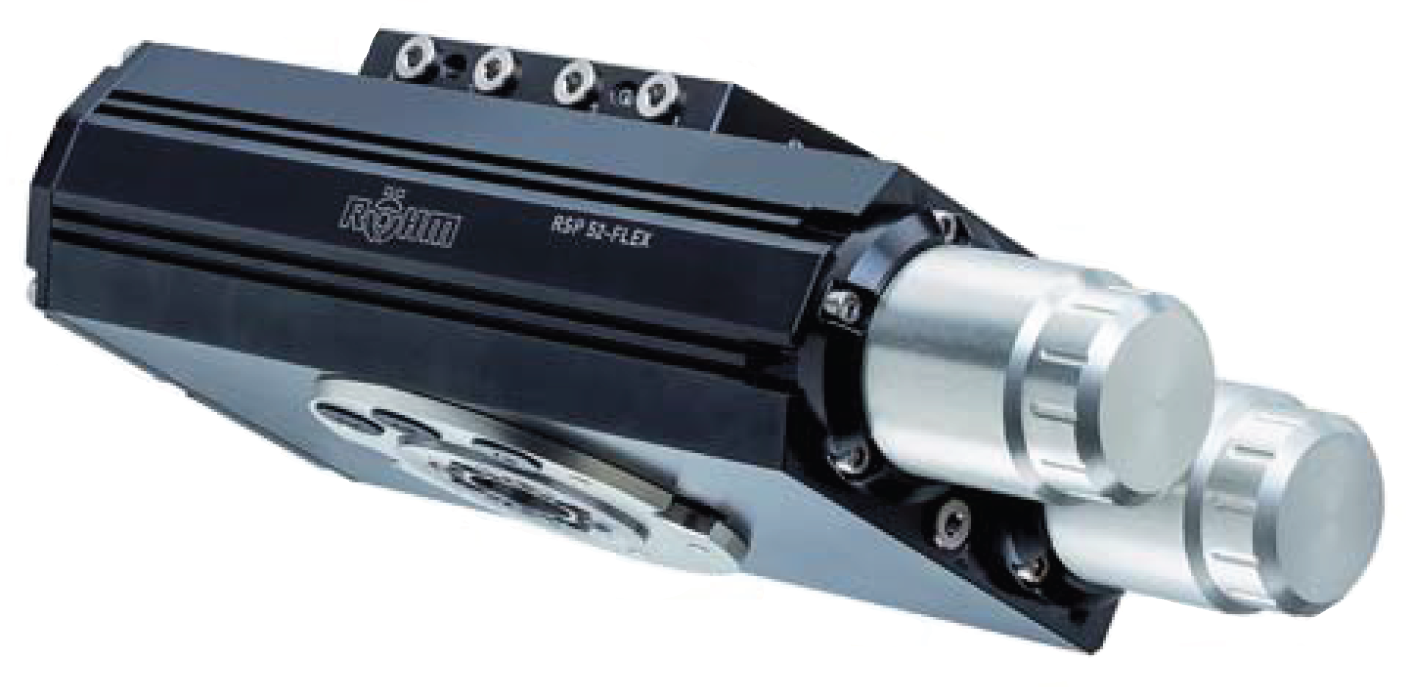

RSP-FLEX 52

Swivel Units RSP-FLEX 32

APPLICATION
Swivel unit with high torque and compact design.
Flexibly adjustable hardness of the shock absorbers.

TYPE
Realise two damping ranges, „hard“ and „soft“ with one swivel unit!

TECHNICAL FEATURES
- Body made of high-strength, hard-coated aluminium

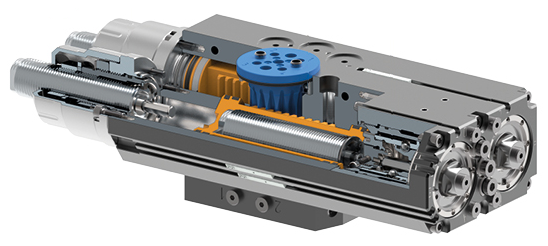

- Pinion shaft and rack made of hardened steel
- End position can be infinitely variably adjusted ± 3° or ± 90°
- Optional inductive and magnetic position sensors
- Up to 8-fold fluid feeder
- Up to 9-fold cable feed-through

CUSTOMER BENEFITS
» Uniform damping in the end positions
» Fine adjustment of the dampers at the end position settings
» Optimal bearing support of the rotary plate for several million cycles
» Energy supply possible by means of screw connection or via hoseless direct connection
» Can be used in all positions - e.g. vertical, suspended, horizontal

C40
RSP-Flex, air operated

	RSP32-Flex-90-J3	RSP32-Flex-180-J3	RSP32-Flex-180-J90	RSP32-Flex-180-J3-MV
RSP-Flex Basic unit	174000	174001	174002	174003
RSP-Flex + fluid feed-through*	174006	174007	174008	174009
RSP-Flex + fluid feed-through* + cable feedthrough**	174012	174013	174014	174015
RSP-Flex + fluid feed-through* + cable feedthrough + proximity switch adapter*	174018	174019	174020	174021
Pivot angle °	90	180	180	180 + 2x90
End position adjustability °	± 3	± 3	90 ± 3	± 3
Mid-position adjustability °	-	-	-	± 3
Torque at 6 bar Nm	10	10	10	10
Nominal operating pressure (min./max.) bar	6	6	6	6
Connecting hose ø mm	6	6	6	6
Operating temperature min./max. °C	5-80	5-80	5-80	5-80
Repeat accurancy °	± 0.01	± 0.01	± 0.01	± 0.01
Weight kg	2.5	2.5	2.5	3.6

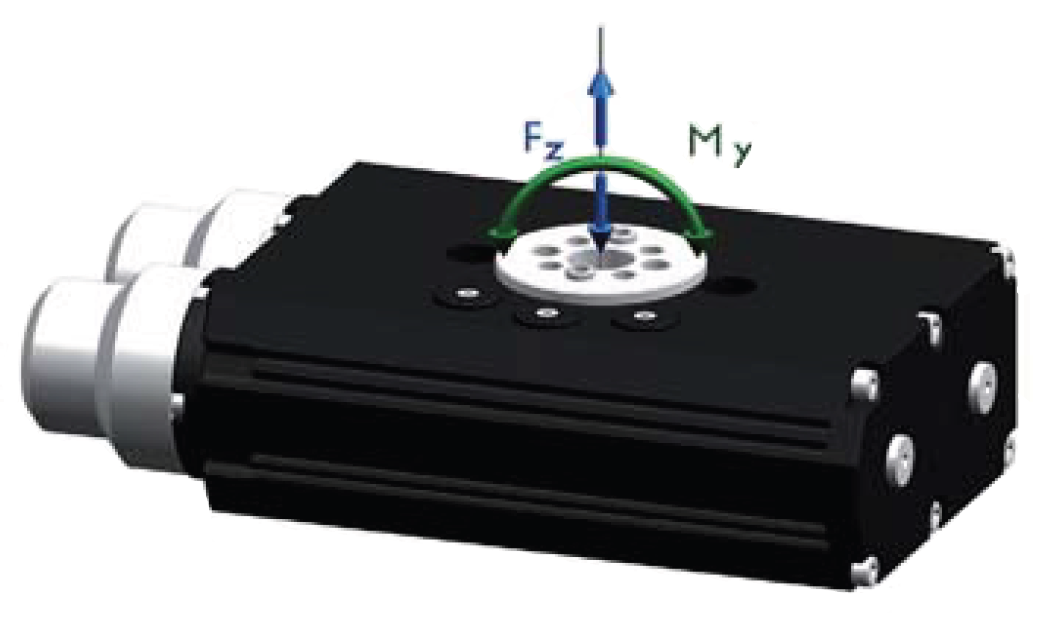

Axial bearing load F_z N	800	800	800	800
Radial bearing load M_y Nmm	19	19	19	19
* Number of fluid feed-through RSP32=4; RSP42/RSP52=8 (max. 8 bar) Number of signals=RSP32=8; RSP42/52=10 (24V, max. 1A), plug machine side M16, plug tool side M8 ***** Number of holders for proximity switches: 3

We reserve the right to make technical changes.
