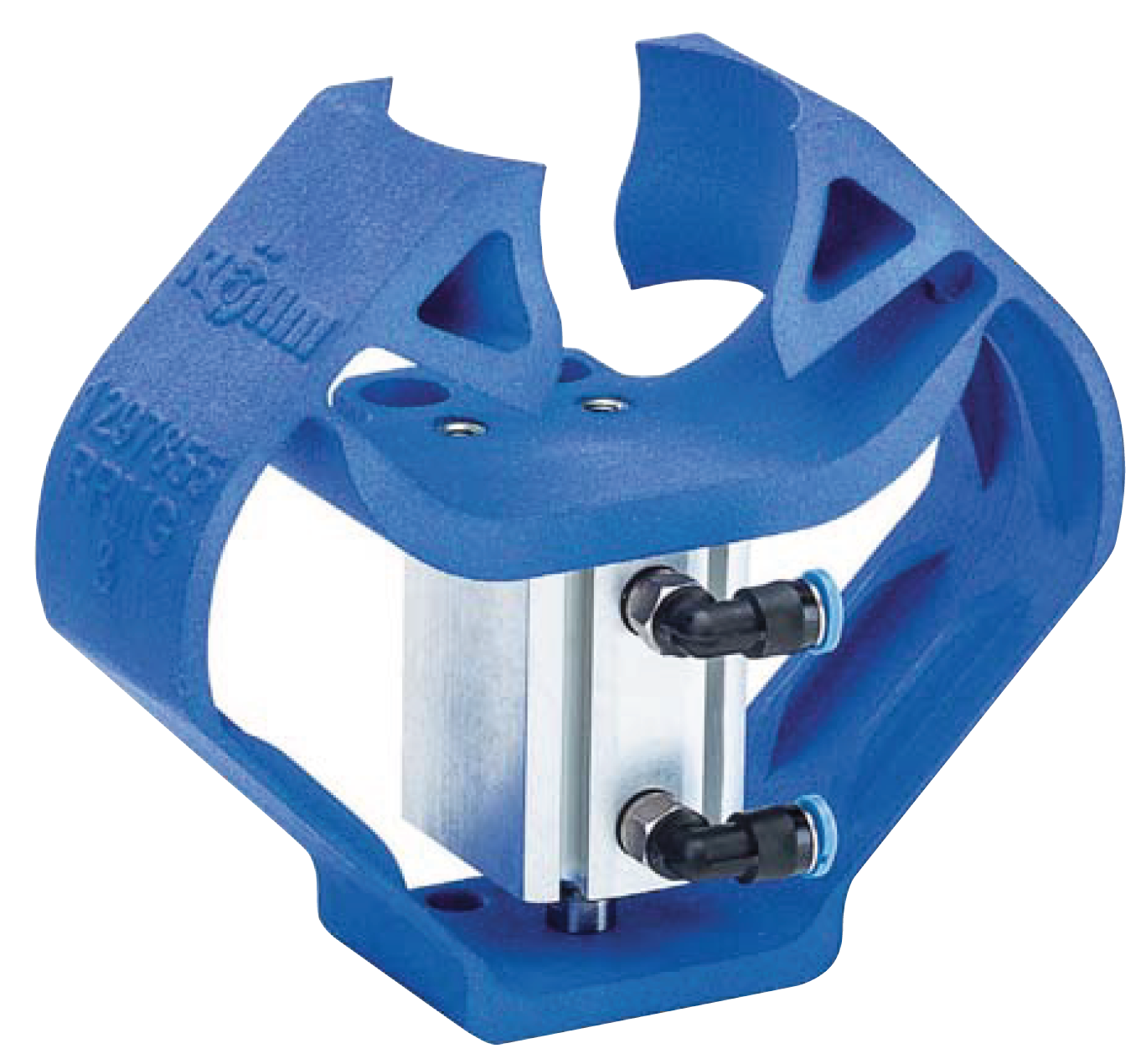

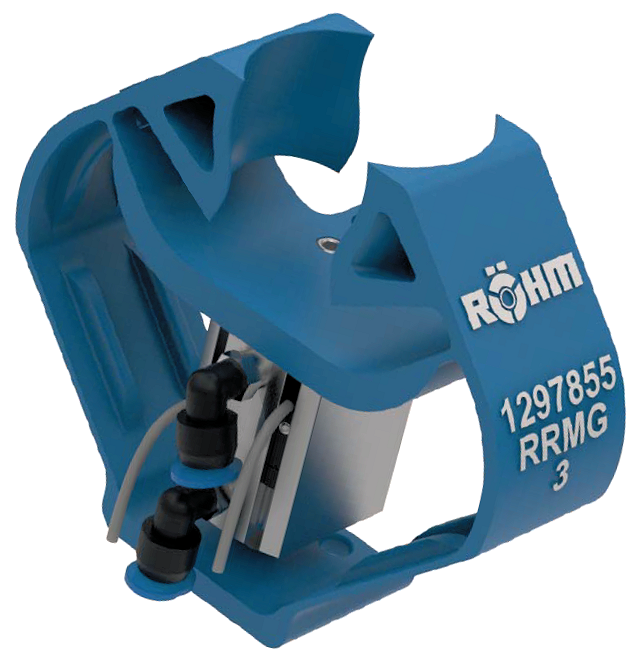

Synthetic Gripper RRMG  |
APPLICATION Synthetic gripper for light, sensitive workpieces with complex geometries. TYPE Customized and perfectly adapted jaws on the form of the workpiece. TECHNICAL FEATURES - Synthetically built by selective laser sinthering for short delivery times - Especially robust and durable material polyamid with FEM-optimized structure - Optional position monitoring by installable standard sensors - Position monitoring by magnetic sensors possible - Further designs and sizes on request (e.g. double gripper, internal gripper, etc.) |
 |
| CUSTOMER BENEFITS » Part specific unique gripper for sensitive workpieces with complex geometries » FEM optimized structure with 30 % higher clamping force » Customized and perfectly adapted to the workpiece using the 3D-model » Application specific design of the flange for maximum flexibility » Up to 16 million gripping cycles without maintenance or wear and tear |

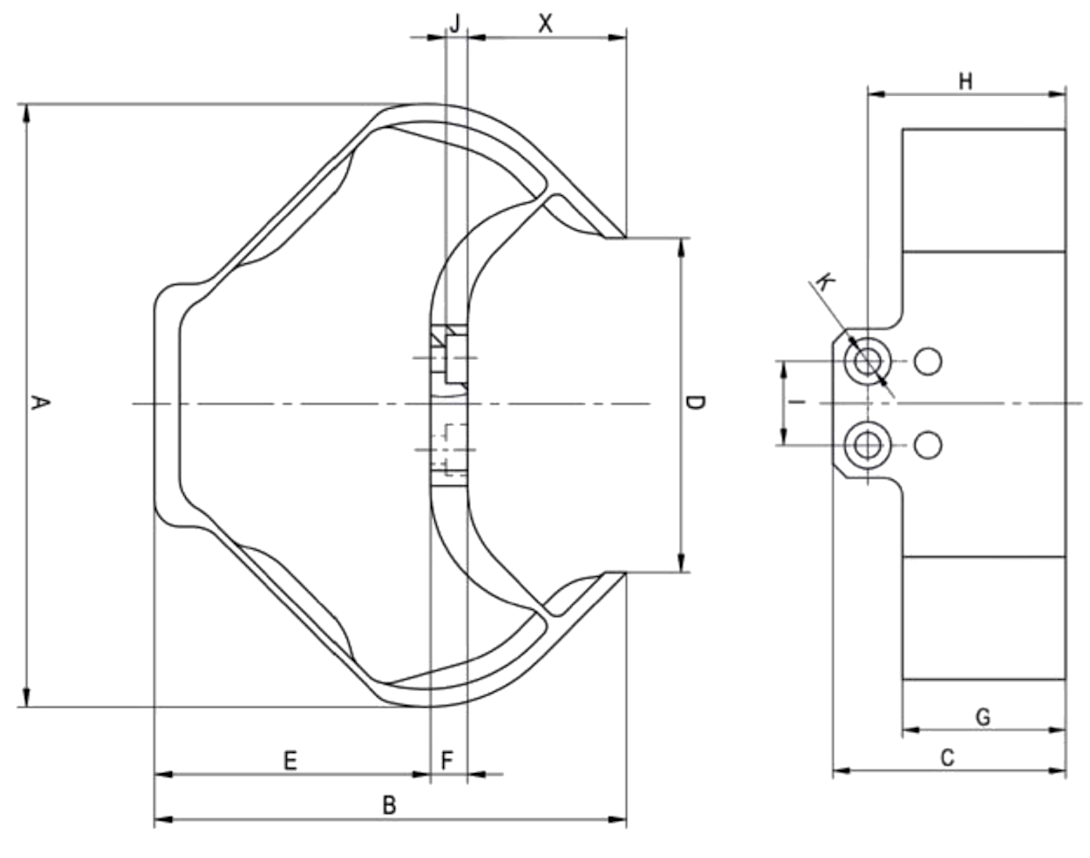

| Synthetic gripper RRMG | |||||||||||||||
| Size | Gripping force* N |
Stroke* mm |
Clamping point X |
A mm |
B mm |
C mm |
D mm |
E mm |
F mm |
G mm |
H mm |
I mm |
J mm |
K Ø mm |
|
| RRMG | 2 | 80 | 2.6 | 23.2 | 92 | 75.8 | 37 | 50 | 47 | 5.5 | 25 | 31 | 13 | 3.4 | 4.5 |
| RRMG | 3 | 152 | 4.3 | 31.2 | 118.6 | 92.4 | 50 | 66 | 54 | 7.2 | 35 | 42.5 | 18 | 4.2 | 5.5 |
| * At clamping point X | |||||||||||||||
We reserve the right to make technical changes.
