Röhm 2-Jaw Long Stroke Gripper RGP-30

RGP-30

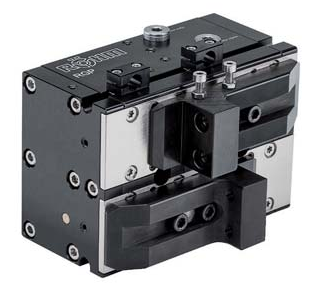

RGP-40

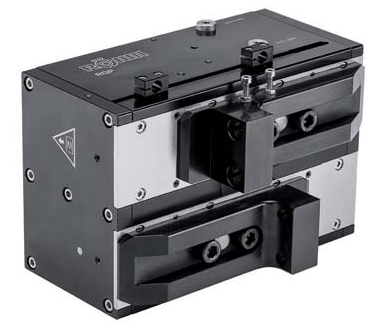

RGP-50

2-Jaw Long Stroke Gripper RGP-30

APPLICATION
Sealed large-stroke gripper for handling large parts and high
part variety.

TYPE

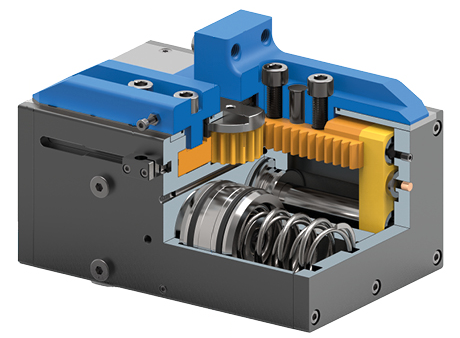

Available in sizes 30, 40 and 50 with integrated seal - optionally with gripping force securing device. High precision thanks to double-piston drive synchronized via gear wheel.

TECHNICAL FEATURES
- Centrically clamping in compact design made of high-strength, hard-coated aluminium alloy
- All functional parts made of hardened steel for maximum service life
- Robust double piston guide in compact design
- Optional inductive and magnetic position sensors
- Optionally available with FKM seals for higher temperatures up to 150°C (on request)
- Integrable purge air connection to prevent contamination

CUSTOMER BENEFITS
» High gripping force with simultaneously high jaw stroke by means of double-acting pressure pistons
» High torque support for using long gripper fingers thanks to elongated jaw guide
» Sealed for rough ambient conditions with quad-ring seal and highly precise intermediate jaws
» Maximum flexibility thanks to versatile connection and fastening options

C40
RGP-30 - 2-jaw long stroke gripper air operated

Item No.	170109	170110
Design	RGP 30	RGP 30-GA
Gripping force at 6 bar N	630	720
Stroke per jaw mm	30	30
Gripping force maintained N	-	90
Recommended workpiece weight kg	3	3
Weight kg	3.2	3.2
Width mm	134	134
Height mm	66	66
Depth mm	94	94
Mx Nm	30	30
My Nm	95	95
Mz Nm	45	45
Fz N	1000	1000
Operating pressure min./max. without GA/GI bar	2-8	-
Operating pressure min./max. with GA/GI bar	-	5-6.5
Clamping time s	0.3	0.35
Opening time s	0.3	0.35
Air consumption per cycle cm³	92	92
Max. allowable length of jaw mm	150	100

We reserve the right to make technical changes.
