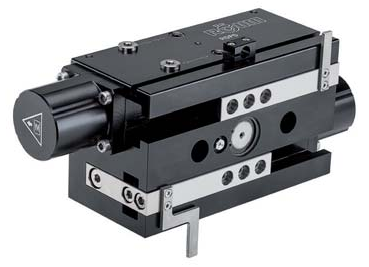

Long Stroke Gripper RGPO-4060

APPLICATION
Premium large stroke gripper with large stroke and ground jaw guides.

TECHNICAL FEATURES
- Gripper body made of high-strength, hard-coated aluminium
- Toothed racks, intermediate jaws and gear wheel made of hardened steel
- High torque absorption of the intermediate jaws due to the robust flat guide of the toothed racks
- Suitable for the use of long top jaws
- Centric clamping is realized via the synchronization of the two toothed racks with one gear wheel
- Special gripper type available with additional spring set to prevent loss of gripping force during
external or internal gripping
- Energy supply possible by means of screw connection or via hoseless direct connection

CUSTOMER BENEFITS
» Up to 5 million cycles maintenance-free
» Available on request: temperature-resistant version (up to approx. 150° C)

C40

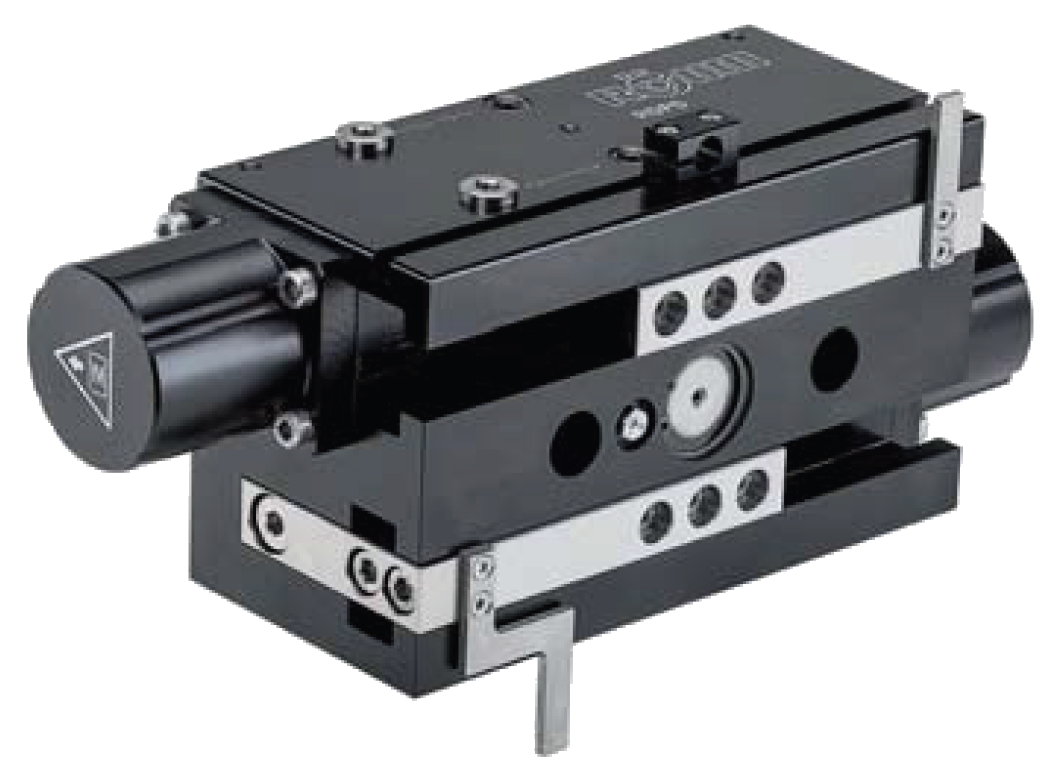

RGPO 4060 - 2-jaw large stroke gripper air operated

Item No.	172774	172775
Design	RGPO 4060	RGPO 4060-GA
Gripping force at 6 bar N	1250	1920
Stroke per jaw mm	60	60
Recommended workpiece weight kg	5.5	5.5
Weight kg	3.8	4.2
Width mm	170	170
Height mm	80	80
Depth mm	100	100
Mx Nm	80	80
My Nm	125	125
Mz Nm	100	100
Fz N	3000	3000
Operating pressure min./max. without GA/GI bar	3.8	-
Operating pressure min./max. with GA/GI bar	-	4-8
Clamping time s	0.35	0.4
Opening time s	0.35	0.35
Air consumption per cycle cm³	278	278
Max. allowable length of jaw mm	150	150

We reserve the right to make technical changes.
