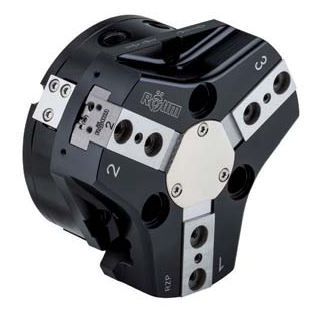

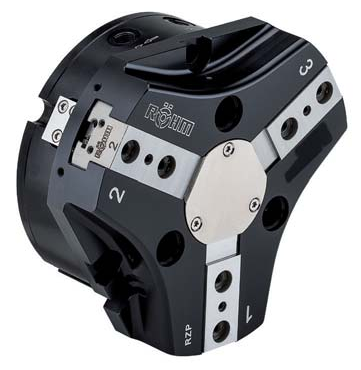

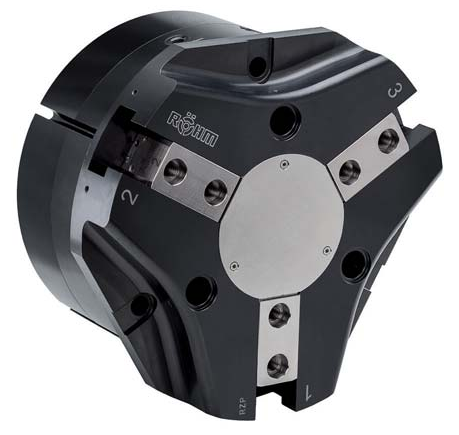

Röhm 3-Jaw Centric Gripper RZP 64

RZP-64

RZP-80

RZP-100

3-Jaw Centric Gripper RZP-64

APPLICATION
Universal gripping of round and cylindrical workpieces with three
centrically arranged gripper fingers for handling with robots or portals.

TYPE
Available from sizes 64 to 300, each in two stroke variants.
Optionally with gripping force safety device and/or dirt cover.
Fastening of the gripper fingers via centering sleeves (included
in the scope of delivery).

TECHNICAL FEATURES
- Centrically clamping in compact design made of high-strength, hard-coated aluminium alloy
- All functional parts made of hardened steel for maximum service life

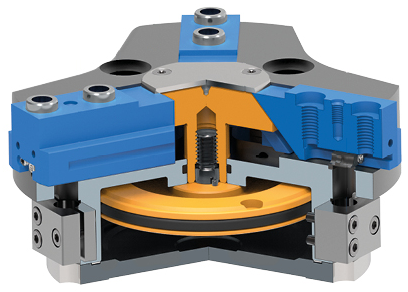

- Wedge hook principle with pneumatic actuation
- Optional inductive and magnetic position sensors
- Optionally available with FKM seals for higher temperatures up to 150°C (on request)
- Integrable purge air connection to prevent contamination

CUSTOMER BENEFITS
» High gripping force with low dead weight and compact design
» High torque support for using long gripper fingers thanks to elongated jaw guide
» Maximum flexibility thanks to versatile connection and fastening options
» Long service life and high reliability thanks to specially ground base jaws in proven T-slot guide

C40
RZP-64 - 3-jaw centric gripper air operated

Item No.	170050	170051▲	170052	170053▲	170054	170055▲
Design	RZP-64/3-1	RZP-64/3-2	RZP-64/3-1 GA	RZP-64/3-2 GA	RZP-64/3-1 GI	RZP-64/3-2 GI
Gripping force at 6 bar N	650	1200	850	1600	900	1700
Stroke per jaw mm	6	3	6	3	6	3
Gripping force maintained N	-	-	200	400	200	400
Recommended workpiece weight kg	3.2	6	3.2	6	3.2	6
Weight kg	0.45	0.45	0.55	0.55	0.55	0.55
Height mm	43.3	43.3	56.8	56.8	56.8	56.8
Ø mm	76	76	76	76	76	76
Mx Nm	40	40	40	40	40	40
My Nm	60	60	60	60	60	60
Mz Nm	40	40	40	40	40	40
Fz N	1100	1100	1100	1100	1100	1100
Operating pressure min./max. without GA/GI bar	2-8	2-8	-	-	-	-
Operating pressure min./max. with GA/GI bar	-	-	4-7	4-7	4-7	4-7
Clamping time s	0.03	0.03	0.02	0.02	0.04	0.04
Opening time s	0.03	0.03	0.04	0.04	0.02	0.02
Air consumption per cycle cm³	25	25	25	25	25	25
Max. allowable length of jaw mm	90	85	85	80	85	80
▲ on request

We reserve the right to make technical changes.
